Technological Advantage
EC61400 Certification
The world's first certified.
Certificate Number: TC-159/124342040.
Certificate Number: TC-159/124342040.
Dual-Axis H-Type System
Power generation efficiency of 1+1>2.
Intelligent Wind-Seeking Array Body
Suitable for scenarios with frequent wind direction change.
Modular Design
The M-L modular design, Easy installation.
Intelligent Control System
W-Q control system, VSG, FLC and DQN algorithms, RT, Safety, Stability and Efficiency.
Specifications
WQ-B6-10kW / WQ-C5-80kW

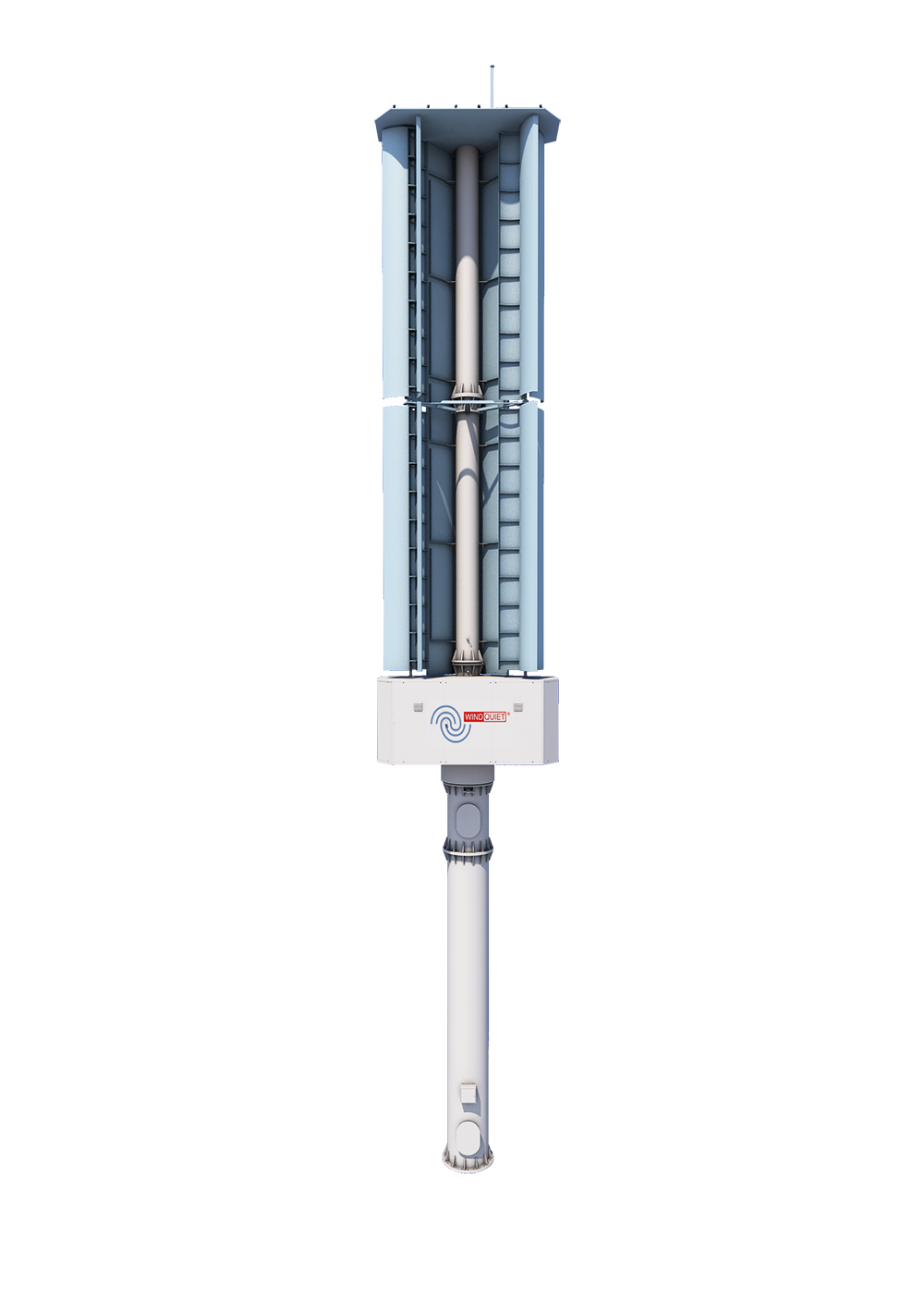

WQ-B6-10kW
Aerodynamic Principle
Resistance Type
Rated Power
10kW
Cut-in Speed
3m/s
Number of impellers
2 Groups
Rated Wind Speed
12.3m/s
Braking
System
System
Electromagnetic Brake
Cut-Out Speed
25m/s
Gearboxes
No
Survival Wind Speed
52m/s
Generator
Permanent Magnetism
Height
21m
Operating Temperature
-20 to 40℃

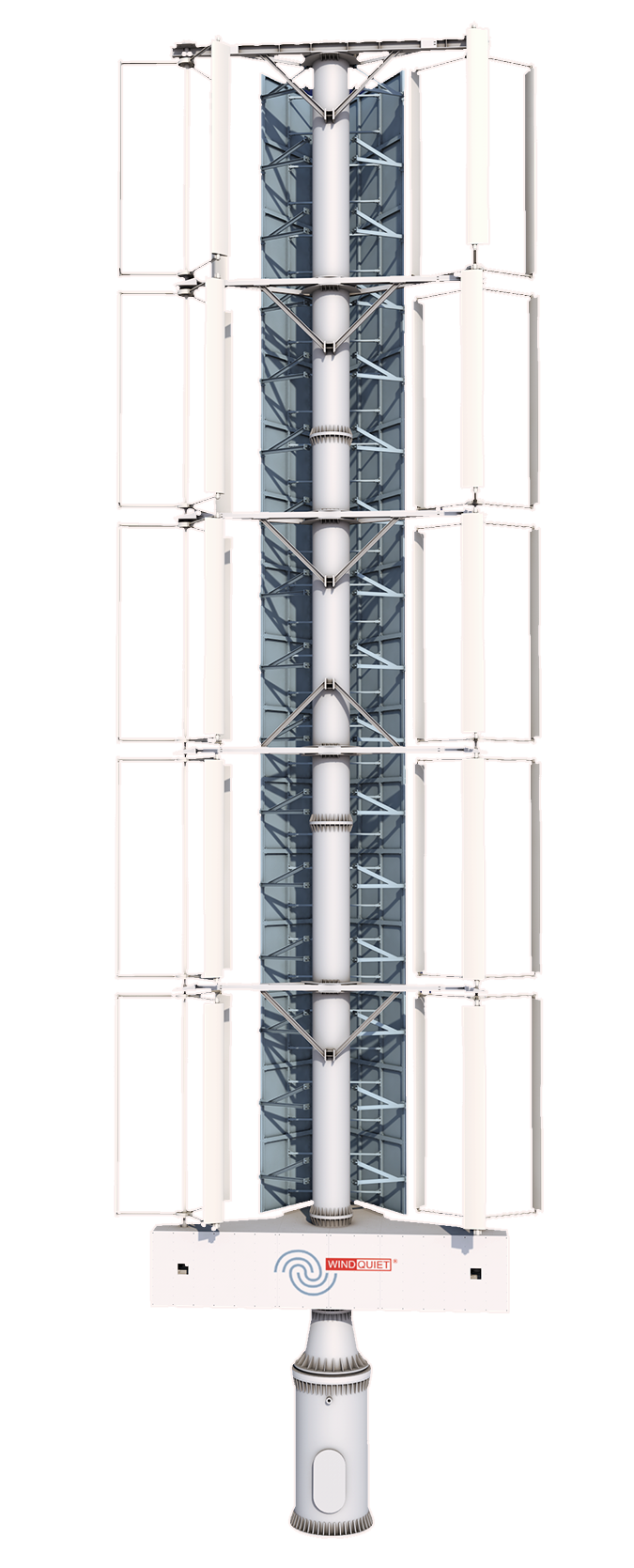

WQ-C5-80kW
Aerodynamic Principle
Lifting Type
Rated Power
80kW
Cut-In Speed
3m/s
Number of Impellers
2 Groups
Rated Wind Speed
11m/s
Braking
System
System
Double Electromagnetic Brake
Cut-Out Speed
25m/s
Gearboxes
Yes
Survival Wind Speed
52m/s
Generator
Permanent Magnetism
Height
40m
Operating Temperature
-20 to 40℃
Product Features

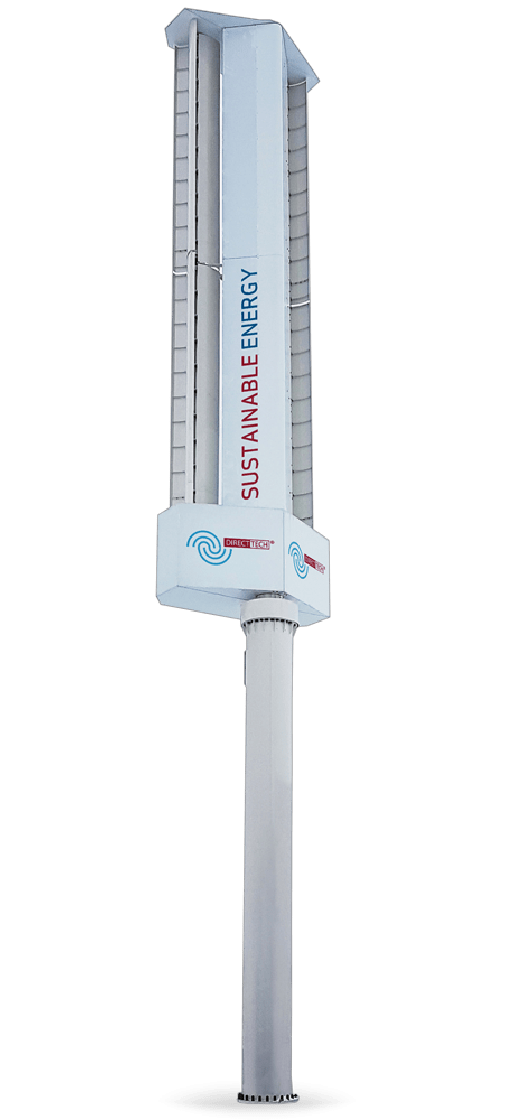

New vertical axis breeze generator
Gentle Breeze Start
+
Low wind-speed startup via
precision drive-train.
precision drive-train.
Smart Wind Guidance
+
Unigue blade and bearing design
for automatic wind alignment.
for automatic wind alignment.
Easy Transport
+
Modular design with compact
steel frames.
steel frames.
+
Quick Installation
Minimal equipment and labor
required; single-day
installation.
required; single-day
installation.
+
Smart Monitoring
Remote monitoring and
control via automation and
smart platforms.
control via automation and
smart platforms.
+
Low Maintenance
Easy access to blades and
components,reducing
dewntime.
components,reducing
dewntime.
